E-system: Campatible with SHIMANO DU-EP801 motor.
Battery: Compatible with SHIMANO BT-E8036 (630Wh) and Darfon E4C0G (720Wh)
Perfect for: All mountain riders.
Rear Travel: 150mm.
Rear Shock Size: 190*51mm
Tires: Designed to work with 29"*2.6"/27.5"*3.0" tire.
Cable routing: All internal cable routing. Internal dropper post routing.
Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :

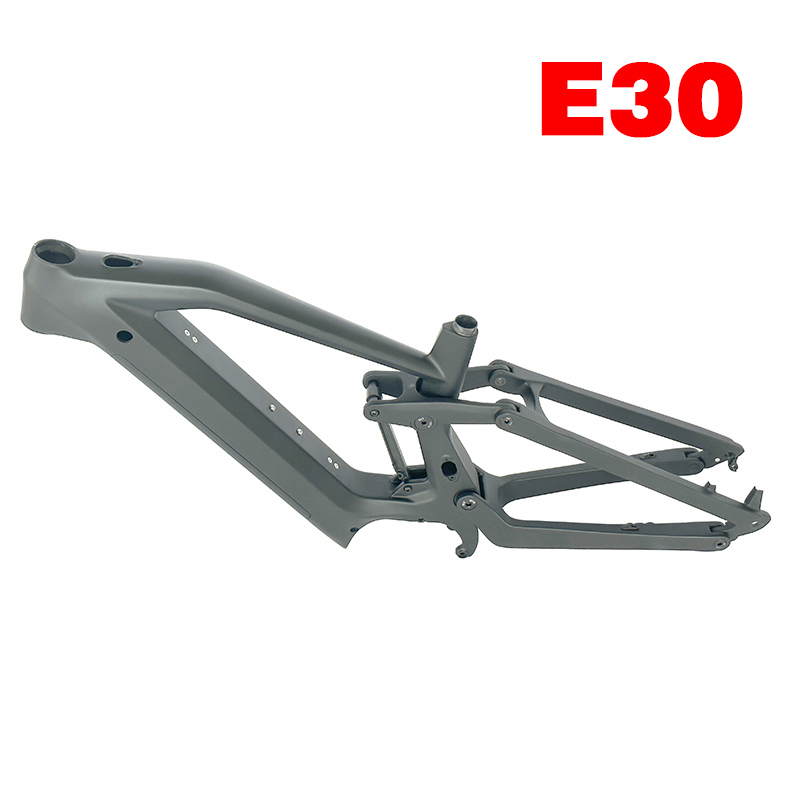

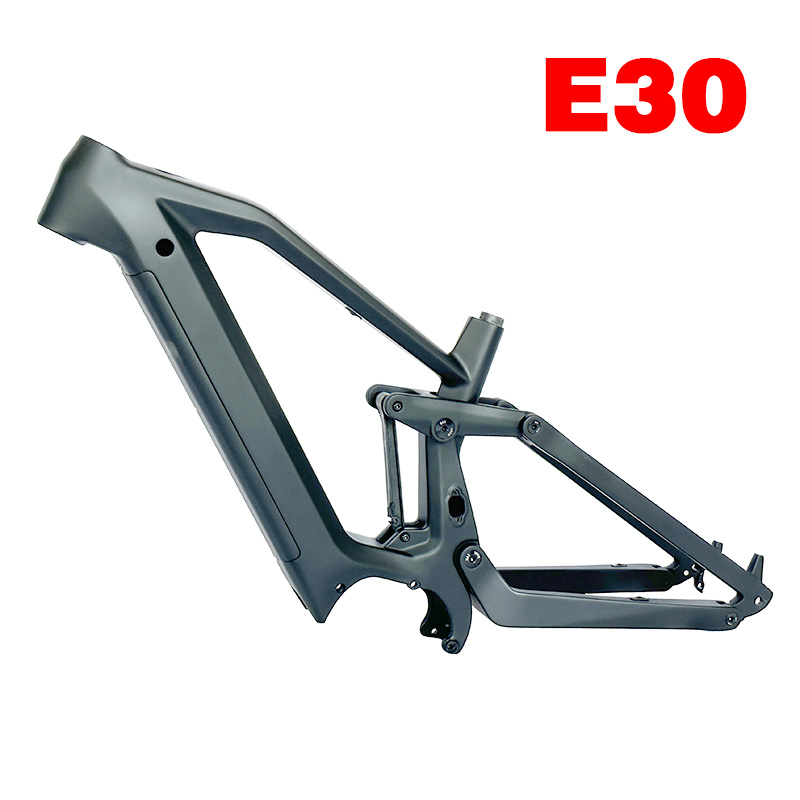

E30Shimano Full Suspension Carbon E-MTB Frame
QYH CARBON Bike Frame E30 is a Shimano Full Suspension Carbon E-MTB Frame. With a longer rear travel 150mm. The E30 carbon frame is fit with SHIMANO DU-EP801 motor. The downtube is designed compatible with SHIMANO BT-E8036 (630Wh) and Darfon E4C0G (720Wh) internal battery. It means you can power SHIMANO DU-EP801 motor on long rides. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | Shimano Full Suspension Carbon E-MTB Frame |
| Brake | Post Mount Disc Brake |
| Size | 17.5" / 19" |
| Motor | Shimano DU-EP801 Mid Drive Engine |
| Battery | SHIMANO BT-E8036 (630Wh) and Darfon E4C0G (720Wh) |
| Headtube | Straight 1-1/2" |
| Seatpost | φ31.6mm |
| Max Tire | 29"*2.6" / 27.5"*3.0" |
| Weight | 3950g±50g (17.5") |
| Rear Shock Size | 190*51mm (22.2*φ8mm, 22.2*φ8mm) |
| Rear Travel | 150mm |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
