29er Full Suspension Carbon Fiber All Mountain Frame Fit Bafang Motor M510/M560

29er Full Suspension Carbon Fiber All Mountain Frame Fit Bafang Motor M510/M560

29er Full Suspension Carbon Fiber All Mountain Frame Fit Bafang Motor M510/M560

E-system: Campatible Bafang M510/M560 motors.

Battery: The internal battery is Bafang BT F25.

Perfect for: All mountain riders:

Rear Travel: 150mm.

Rear Shock Size: 190*51mm (Up54*M10*P1.0, Down 22*1φ10)

Tires: Designed to work with 29"*2.6"/27.5"*3.0".

Cable routing: All internal cable routing. Internal dropper post routing.

Material: High Modulus Carbon Fiber

  • Item No :

    E18-B

29er Full Suspension Carbon Fiber All Mountain Frame Fit Bafang Motor M510/M560

QYH CARBON Frame E18-B is a 29er Full Suspension Carbon Fiber Mountain EBike Frame.  work with 29"*2.6" tire and with a longer rear travel 150mm. The E18-B frame is compatible with bafang M510/M560 motor systerms. The downtube is designed with BAFANG BT F15 internal battery.  820Wh battery, It means you can power M510 or M560 on long rides. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.



Product Specification:

Frame 29er Full Suspension Carbon Fiber All Mountain Frame Fit Bafang Motor M510/M560
Material High Modulus Carbon Fiber
Size 15.5" / 17.5" / 19"
Max Tire Clearance 29"*2.6"/27.5"*3.0"
Headtube Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57)
Motor System Campatible with Bafang M510/M560 motors.
Battery Bafang BT F25.820wh Battery
Brake Type Post Mount Disc brake 180mm disc rotor (Max can fit 203mm disc rotor, need adapter)
Rear Travel 150mm
Rear Shock Size 190*51mm standard mount rear shock(bushing kits spec 22.2*10mm upper and bottom)
Dropout Thru Axle 12*148mm Boost
Max Chainring 44T
Max Cassette 10-52T
Test Standard ISO4210
Warranty 2 Years



Company Information:

JiangSu QYH Carbon Tech Co.,Ltd Established in 2014. We’re a customer-oriented composite product manufacturer. We focus on the development of carbon fiber bicycle frame and also provide comprehensive manufacturing services for well-known brands among the world. And pay much attention to technological research and development, quality control.

We offer carbon composites development and manufacturing services for various products, such as bicycle frames, bicycle components, sporting goods, etc.

 OEM/ODM (R&D)

1, Computer Aided Compression Stroke Simulation

By using Compression Stroke Simulation methods,  We're able to improve kinematics quality, speed up analysis - in a straightforward and intuitive way.

2, Carbon Frame Shape & Structure Design

Ability to create unique frame and fork structural design to achieve stronger, more durable and the most importantly safer products for the clients.

3, Compatibility Testing for Frame and Components

When designing a bike frame, we collectively consider the frame, groupset, motor, battery and other accessories selections. To build your best complete-bike construction plan.

4, Quick Design Verification

Bike models are built using 3D printing software. These models help verify the integrity of the frame and its appearance before mass production. Not only does this create better communication between design and production, it also lowers production costs.



QUALITY CONTROL

1, 100% Inspection of Carbon Frame

QYH sticks to do 100% inspection to make product perfect. And every item must go through the inspection of finishing, specification, and performance testing on strength, stiffness, fatigue test so every finished product in QYH will be implemented rigid quality and quality security.

2, Raw Material Inspection

According to your company's specifications and international regulations, parts are randomly inspected. This process ensures that components are qualified and safe.

3, Sample Frame Service

Before mass production, R&D teams will working together with customers, assemble one complete bike for quality control examination. Several tests will be conducted to ensure the product's quality complies with regulations and meets customer needs.

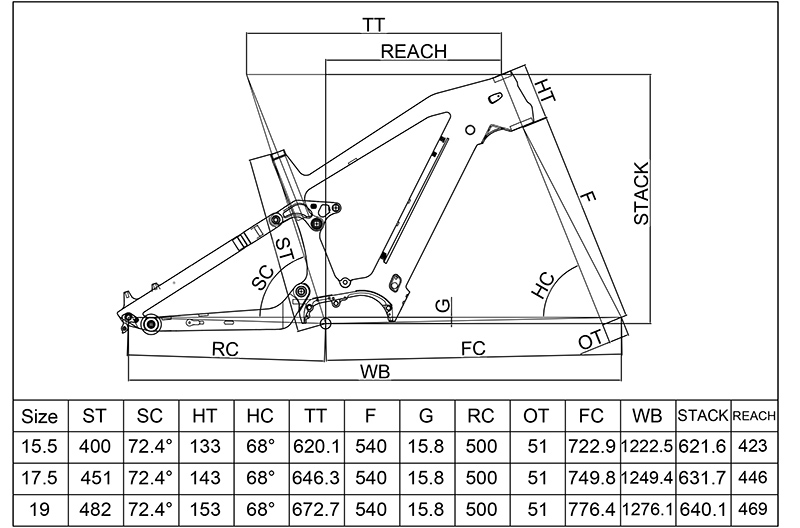

E18-Geometry
