E-system: 1000W Bafang M620 motor.
Battery: The internal battery is Bafang BT F15.882C
Perfect for: Fat Bike riders.
Rear Travel: 150mm.
Rear Shock Size: 190*51mm
Tires: Designed to work with 26*4.8'' tire.
Cable routing: All internal cable routing. Internal dropper post routing. Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :

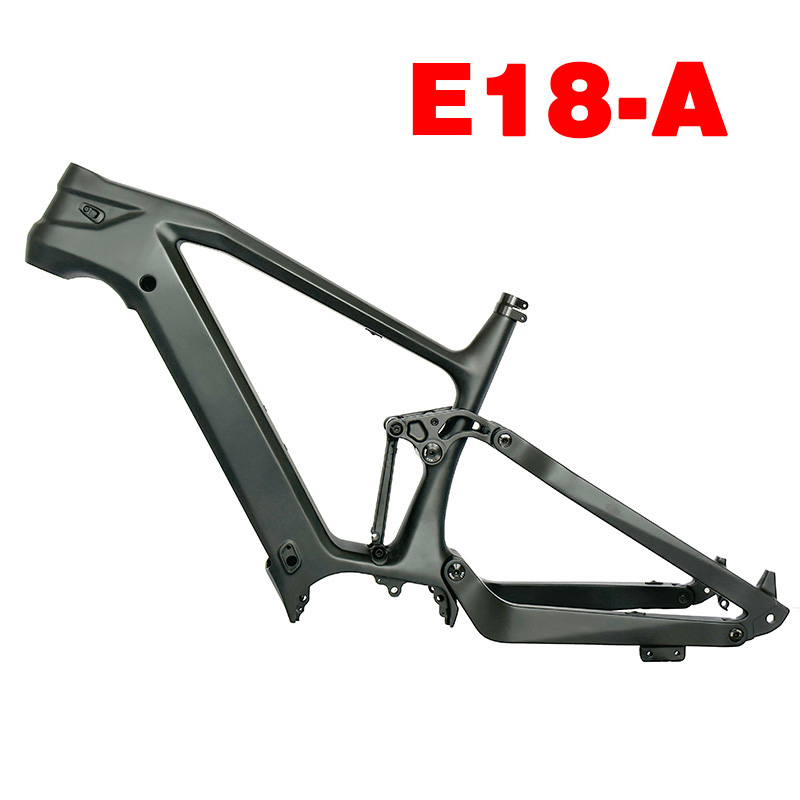

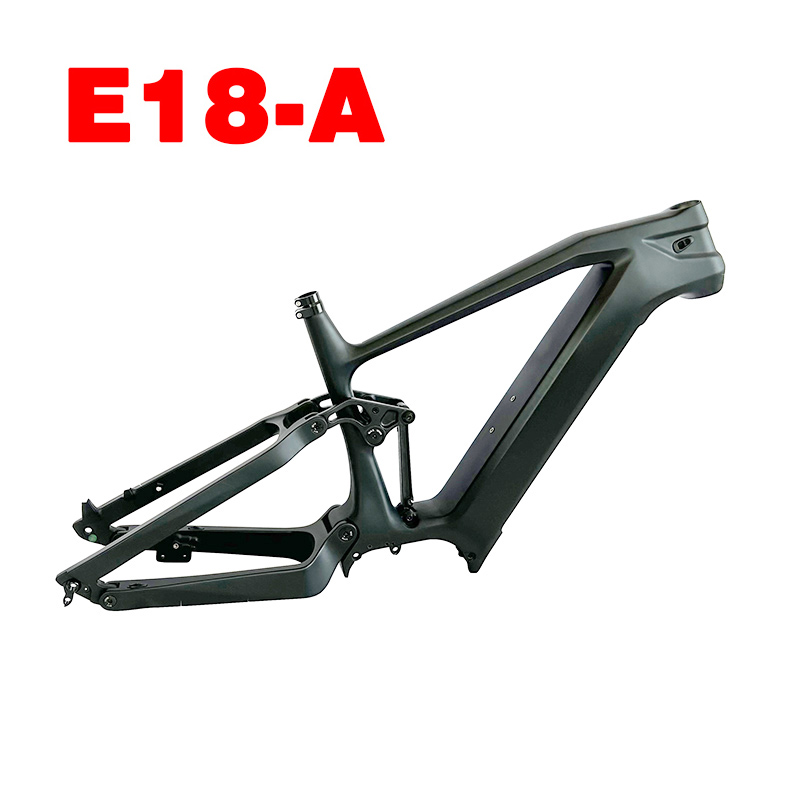

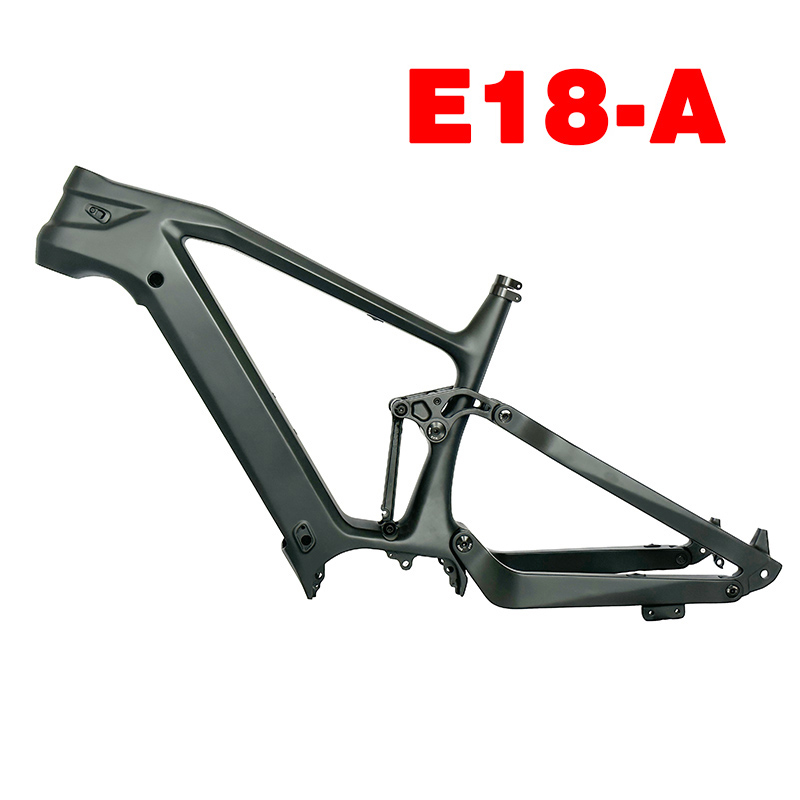

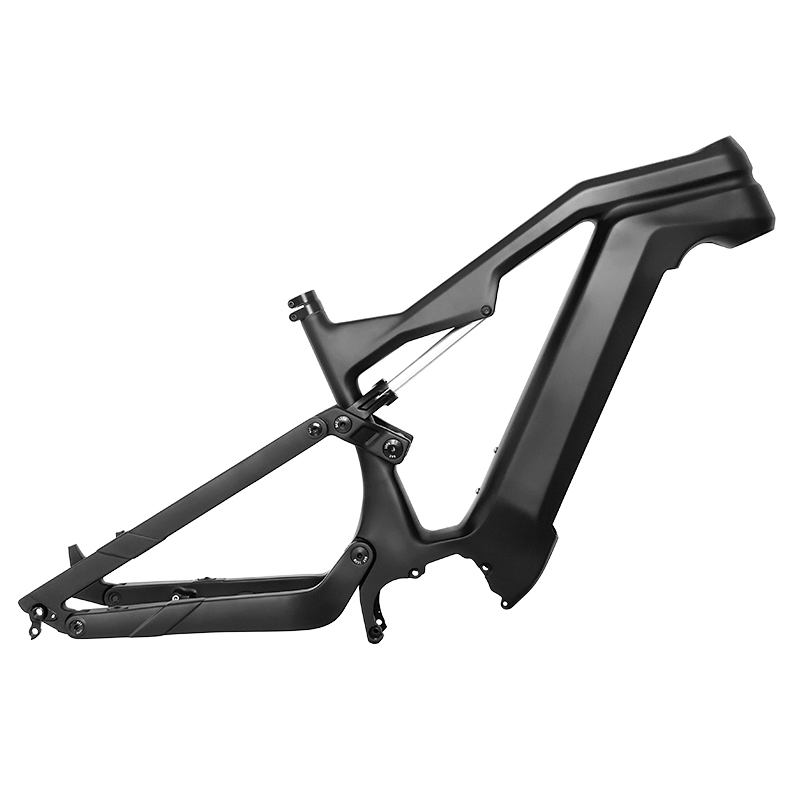

E18-ACarbon Fat E-Bike Frame 1000W Mid Drive Motor Bafang M620 Carbon Full Suspension Electric Fat Bicycle Frame
QYH CARBON Bicycle frame E18-A is a 29er Full Suspension Carbon Fiber Electric Fat Bike Frame. work with 26"*4.8" tire and with a longer rear travel 150mm. The E18-A frame is fit with bafang M620 motor systerms. It means that you could choose the 1000W rated power output motor M620. The downtube is designed with BAFANG BT F15 internal battery. 882Wh battery, It means you can power M620 motor on long rides. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

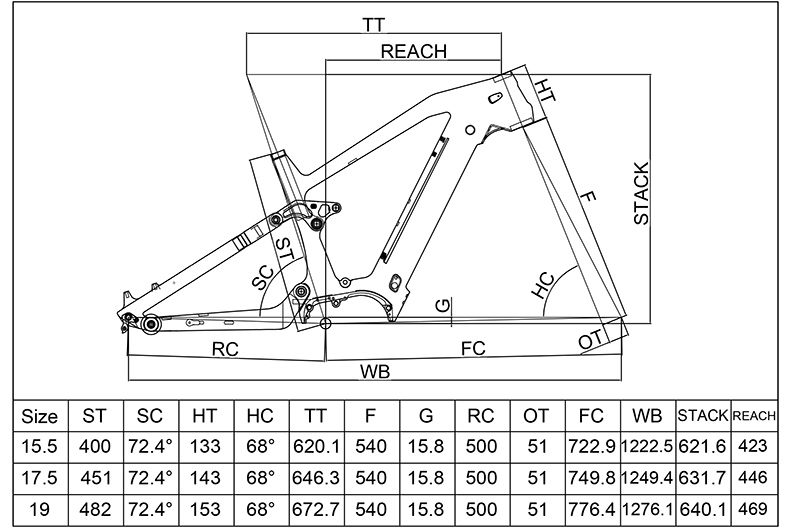

Product Specification:
| Frame | Carbon Fat E-Bike Frame 1000W Mid Drive Motor Bafang M620 Carbon Full Suspension Electric Fat Bicycle Frame | |
| Material | High Modulus Carbon Fiber | |
| Size | 17.5" / 19" | |
| Motor Systerm | Bafang M620 (1000W) | |
| Battery | Bafang BT F15.882C | |
| Max Tire Clearance | 26"*4.8" | |
| Rear Shock Size | 190*51mm standard mount rear shock (bushing kits spec 22.2*10mm upper and bottom) | |
| Rear Travel | 150mm | |
| Front Travel | 150mm | |
| Headtube | Upper 44mm Lower 56mm / Upper 52mm Lower 56mm (Full Internal Cable Routing) | |
| Seatpost | 31.6mm (37mm Seat Clamp) | |
| Dropout | φ12mm*197mm | |
| Brake Type | Post Mount Disc Brake | |
| Max Chainring | 44T | |
| Weight | 4010g±50g (17.5") | |
| Test Satandard | ISO4210 | |
| Warranty | 2 Years |
