Home Road E-Bike

700C Electric Road bike Carbon Frame Fit Bafang Motor M800

700C Electric Road bike Carbon Frame Fit Bafang Motor M800

700C Electric Road bike Carbon Frame Fit Bafang Motor M800

E-system: Bafang M800 motors.

Battery: Bafang internal battery BT F05.

Perfect for: Road Bike Rider.

Tires: Designed to work with 700C*32C tire.

Cable routing: All internal cable routing. Internal dropper post routing.

Material: High Modulus Carbon Fibric

  • Item No :

    E05

700C Electric Road bike Carbon Frame Fit Bafang Motor M800

QYH CARBON Frame E05 is a 700C Electric Road bike Carbon Frame. The downtube is designed with bafang BT F05 internal battery. The frame is compatible with bafang M800 light motor systerms.



Product Specification:

Frame 700C Electric Road bike Carbon Frame Fit Bafang Motor M800
Size 510mm / 540mm /560mm
Fork QTOUR carbon Fork F10
Seatpost QTOUR specify setback seatpost P04
Headtube Straight 1 1/2'' head tube(upper 52mm lower 52mm)
Weight Frame: 1200g±50g, Fork: 450g±20g
Motor Systerm Bafang M800
Max Tire Clearance 700C*32C
Dropout Front: 100mm*φ12mm(TA), Rear: 142mm*φ12mm(TA)
Groupset Machanical & Di2 Compatible
Test Standard ISO4210
Warranty 2 Years



Company Information:

JiangSu QYH Carbon Tech Co.,Ltd Established in 2014. We’re a customer-oriented composite product manufacturer. We focus on the development of carbon fiber bicycle frame and also provide comprehensive manufacturing services for well-known brands among the world. And pay much attention to technological research and development, quality control.

We offer carbon composites development and manufacturing services for various products, such as bicycle frames, bicycle components, sporting goods, etc.

 OEM/ODM (R&D)

1, Computer Aided Compression Stroke Simulation

By using Compression Stroke Simulation methods,  We're able to improve kinematics quality, speed up analysis - in a straightforward and intuitive way.

2, Carbon Frame Shape & Structure Design

Ability to create unique frame and fork structural design to achieve stronger, more durable and the most importantly safer products for the clients.

3, Compatibility Testing for Frame and Components

When designing a bike frame, we collectively consider the frame, groupset, motor, battery and other accessories selections. To build your best complete-bike construction plan.

4, Quick Design Verification

Bike models are built using 3D printing software. These models help verify the integrity of the frame and its appearance before mass production. Not only does this create better communication between design and production, it also lowers production costs.



QUALITY CONTROL

1, 100% Inspection of Carbon Frame

QYH sticks to do 100% inspection to make product perfect. And every item must go through the inspection of finishing, specification, and performance testing on strength, stiffness, fatigue test so every finished product in QYH will be implemented rigid quality and quality security.

2, Raw Material Inspection

According to your company's specifications and international regulations, parts are randomly inspected. This process ensures that components are qualified and safe.

3, Sample Frame Service

Before mass production, R&D teams will working together with customers, assemble one complete bike for quality control examination. Several tests will be conducted to ensure the product's quality complies with regulations and meets customer needs.

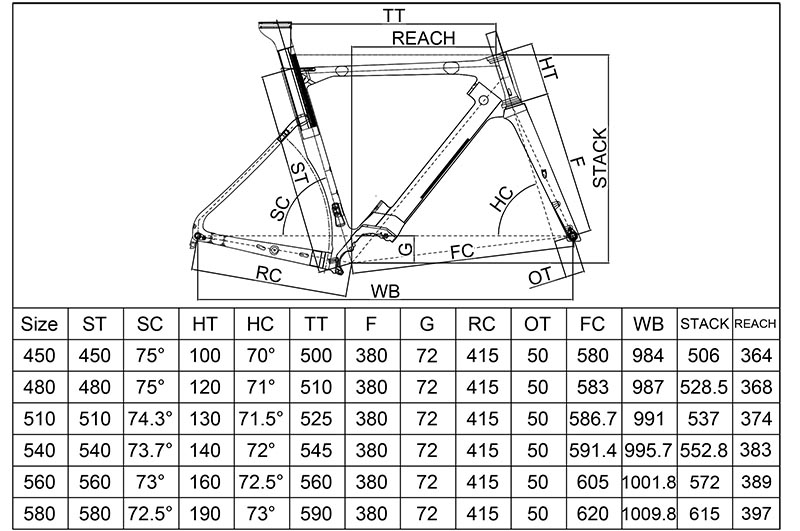

E05-Geometry
