Full Suspension Carbon Fiber Fat EMTB Frame Fit Bafang Motor M620

Full Suspension Carbon Fiber Fat EMTB Frame Fit Bafang Motor M620

Full Suspension Carbon Fiber Fat EMTB Frame Fit Bafang Motor M620

E-system: Campatible with Bafang M620 motor.

Battery: The internal battery is  BAFANG BT F38 (48V*20AH).

Perfect for: Fat Ebike Riders.

Rear Travel: 150mm.

Rear Shock Size: 190*51mm

Tires: Designed to work with 26"*4.8" fat tire. 190mm rear thru axle.

Cable routing: All internal cable routing. Internal dropper post routing. Dropper post is 31.6 diameter.

Material: High Modulus Carbon Fiber

  • Item No :

    E23-A

Full Suspension Carbon Fiber Fat EMTB Frame Fit Bafang Motor M620

QYH CARBON frame E23-A is a Full Suspension Carbon Fiber Fat EMTB Frame.  work with 26"*4.8" tire and with a longer rear travel 150mm. The E23-A frame is fit with bafang M620 motor systerms. The downtube is designed with BAFANG BT F38 internal battery.  960Wh battery, It means you can power M620 motor on long rides. The 190mm rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.



Product Specification:

Frame Full Suspension Carbon Fiber Fat Bike Electric MTB Frame Fit Bafang Motor M620
Brake Post Mount Disc Brake
Size 17.5"
Motor Compatible with Bafang M620
Battery Bafang BT F38.960Wh
Headtube Upper 52mm, Lower 56mm.
Dropout 148mm*12mm(TA)
Max Tire Clearance 26"*4.8"
Weight 4150g±50g (17.5")
Rear Shock Size 190mm*51mm
Rear Travel 150mm
Test Standard ISO4210
Warranty 2 Years



Company Information:

JiangSu QYH Carbon Tech Co.,Ltd Established in 2014. We’re a customer-oriented composite product manufacturer. We focus on the development of carbon fiber bicycle frame and also provide comprehensive manufacturing services for well-known brands among the world. And pay much attention to technological research and development, quality control.

We offer carbon composites development and manufacturing services for various products, such as bicycle frames, bicycle components, sporting goods, etc.

 OEM/ODM (R&D)

1, Computer Aided Compression Stroke Simulation

By using Compression Stroke Simulation methods,  We're able to improve kinematics quality, speed up analysis - in a straightforward and intuitive way.

2, Carbon Frame Shape & Structure Design

Ability to create unique frame and fork structural design to achieve stronger, more durable and the most importantly safer products for the clients.

3, Compatibility Testing for Frame and Components

When designing a bike frame, we collectively consider the frame, groupset, motor, battery and other accessories selections. To build your best complete-bike construction plan.

4, Quick Design Verification

Bike models are built using 3D printing software. These models help verify the integrity of the frame and its appearance before mass production. Not only does this create better communication between design and production, it also lowers production costs.



QUALITY CONTROL

1, 100% Inspection of Carbon Frame

QYH sticks to do 100% inspection to make product perfect. And every item must go through the inspection of finishing, specification, and performance testing on strength, stiffness, fatigue test so every finished product in QYH will be implemented rigid quality and quality security.

2, Raw Material Inspection

According to your company's specifications and international regulations, parts are randomly inspected. This process ensures that components are qualified and safe.

3, Sample Frame Service

Before mass production, R&D teams will working together with customers, assemble one complete bike for quality control examination. Several tests will be conducted to ensure the product's quality complies with regulations and meets customer needs.

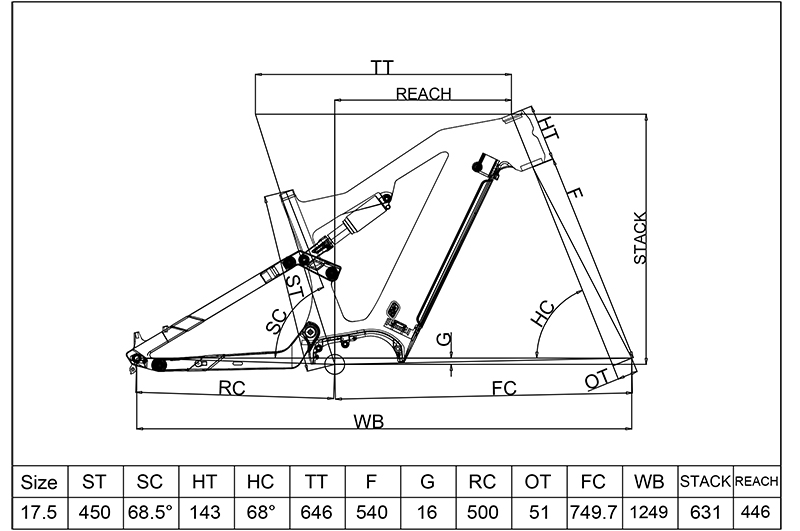

E23-Geometry
