E-system: Campatible Bafang M510 and M560 motors.
Battery: The internal battery is Bafang BT F15.882C
Perfect for: All mountain riders:
Rear Travel: 150mm.
Rear Shock Size: 190*51mm standard mount rear shock
Tires: Designed to work with 29"*2.6"/27.5"*3.0".
Cable routing: All internal cable routing. Internal dropper post routing.
Material: High Modulus Carbon Fiber
Item No :

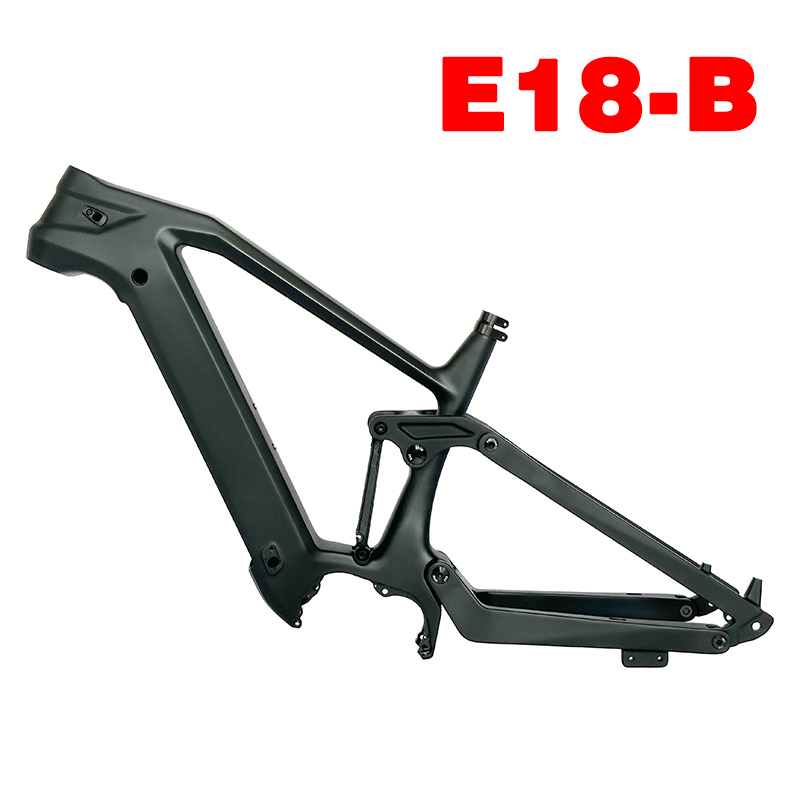

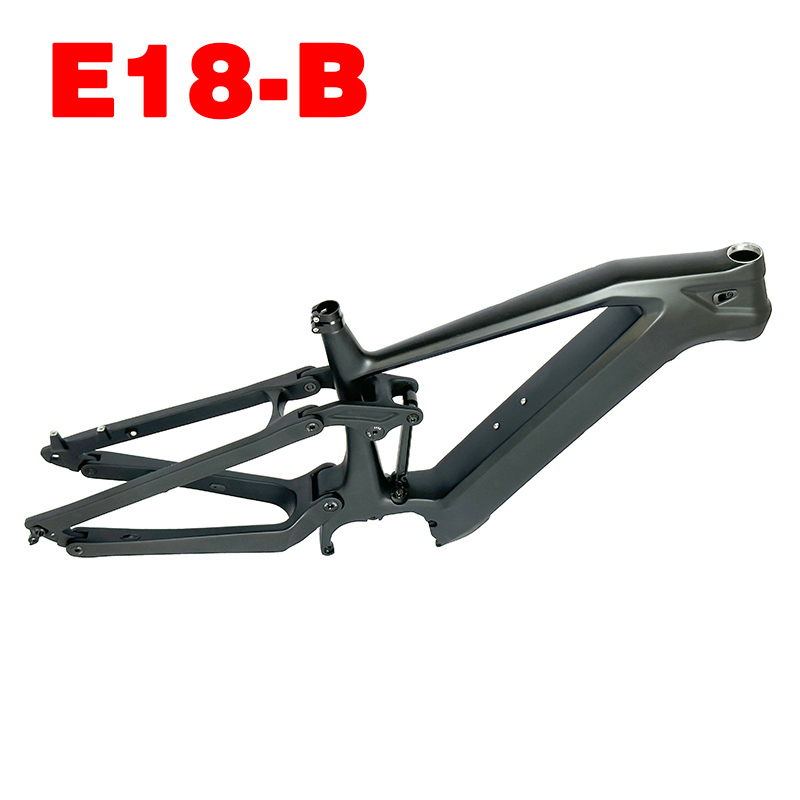

E18-BFull Suspension E-MTB Frame Bafang E-Mountain Bike Carbon Frame
QYH Carbon Bicycle Frame E18-B is a 29er Full Suspension E-MTB Frame Bafang E-Mountain Bike Carbon Frame. Work with 29"*2.6" tire and with a longer rear travel 150mm. The E18-B frame is compatible with bafang M510/M560 motor systerms. The downtube is designed with BAFANG BT F15 internal battery. 882Wh battery, It means you can power M510 or M560 on long rides. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | Full Suspension E-MTB Frame Bafang E-Mountain Bike Carbon Frame |
| Material | High Modulus Carbon Fiber |
| Size | 17.5" / 19" |
| Motor Systerm | Bafang M510 / M560 |
| Battery | Bafang BT F15.882C |
| Max Tire Clearance | 29"*2.6" / 27.5"*3.0" |
| Rear Shock Size | 190*51mm standard mount rear shock (bushing kits spec 22.2*10mm upper and bottom) |
| Rear Travel | 150mm |
| Front Travel | 150mm |
| Headtube | Upper 44mm Lower 56mm / Upper 52mm Lower 56mm (Full Internal Cable Routing) |
| Seatpost | 31.6mm (37mm Seat Clamp) |
| Dropout | φ12mm*148mm |
| Brake Type | Post Mount Disc Brake |
| Max Chainring | 44T |
| Weight | 3950g±50g (17.5") |
| Test Satandard | ISO4210 |
| Warranty | 2 Years |
