E-system: Bafang M620 motor.
Battery: The internal battery is BAFANG BT F38 (48V*21AH).
Perfect for: Fat Ebike Riders.
Rear Travel: 150mm.
Rear Shock Size: 190*51mm
Tires: Designed to work with 26"*4.8" fat tire. 190mm rear thru axle.
Cable routing: All internal cable routing. Internal dropper post routing. Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :
E23-AFull Suspension Carbon Fiber Mountain Bike Frame 1000W Mid Drive Motor Fat E-MTB Frame
QYH CARBON Bicycle Frame E23-A is a Full Suspension Carbon Fiber Mountain Bike 1000W Mid Drive Motor Fat E-MTB Frame. work with 26"*4.8" tire and with a longer rear travel 150mm. The E23-A frame is fit with bafang M620 motor systerms. The downtube is designed with BAFANG BT F38 internal battery. Max 1008 Wh battery, It means you can power M620 motor on long rides. The 190mm rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | Full Suspension Carbon Fiber Mountain Bike 1000W Mid Drive Motor Fat E-MTB Frame |
| Material | High Modulus Carbon Fiber |

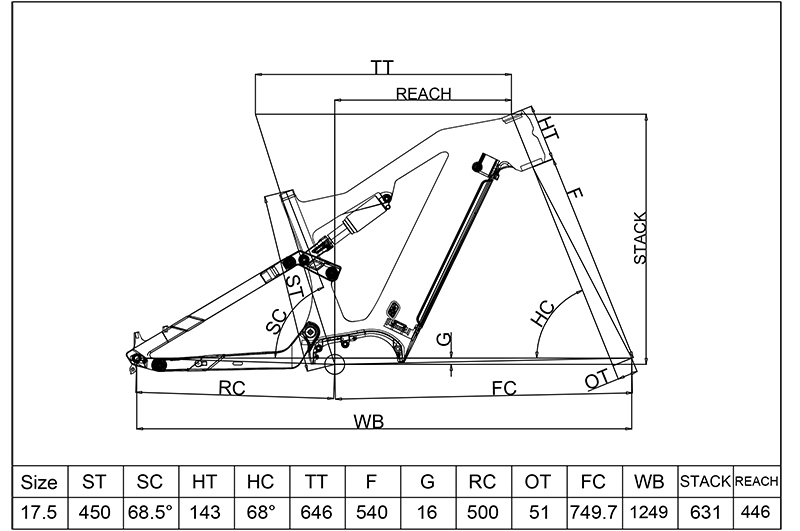

| Size | 17.5" / 19" |
| Motor Systerm | Bafang M620 (1000W) |
| Battery | Bafang BT F15.882C |
| Max Tire Clearance | 26"*4.8" |
| Rear Shock Size | 190*51mm standard mount rear shock (bushing kits spec 22.2*8mm upper and bottom) |
| Rear Travel | 150mm |
| Front Travel | 150mm |
| Headtube | Upper 52mm Lower 56mm (Full Internal Cable Routing) |
| Seatpost | 31.6mm (37mm Seat Clamp) |
| Dropout | φ12mm*197mm |
| Brake Type | Post Mount Disc Brake |
| Max Chainring | 44T |
| Weight | 4150g±50g |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
