E-system: Campatible with Bafang M510 & M560 motor.
Battery: The internal battery is BAFANG BT F15 (36V*24.5Ah).
Perfect for: All Mountain Riders.
Rear Travel: 150mm.
Rear Shock Size: 190mm*51mm (UP: 22.2*Φ8, Down: 22.2*Φ8)
Tires: Designed to work with 29"*2.6". 148mm rear thru axle.
Cable routing: All internal cable routing. Internal dropper post routing. Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :

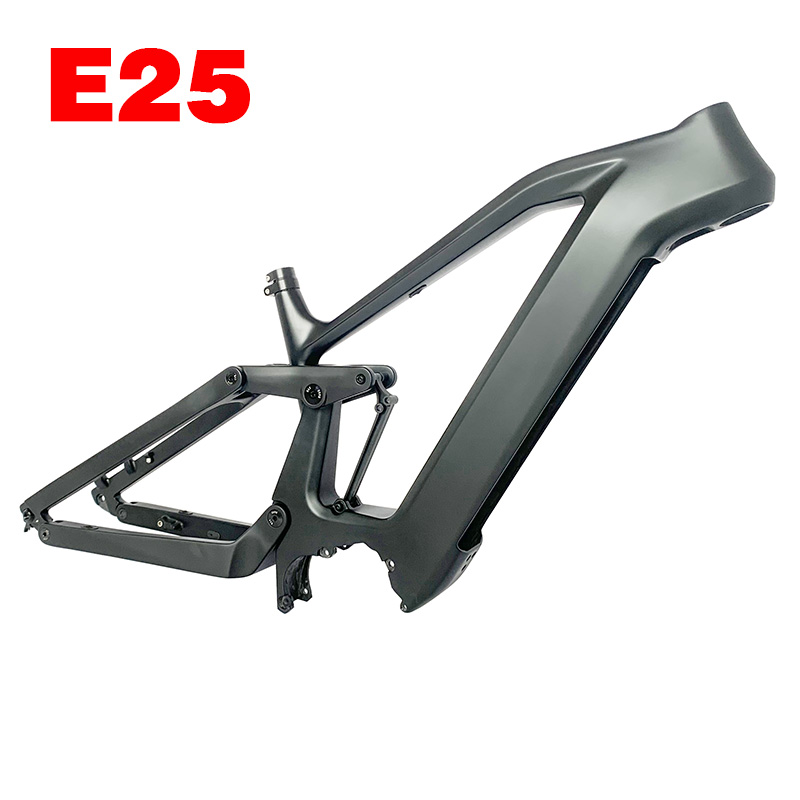

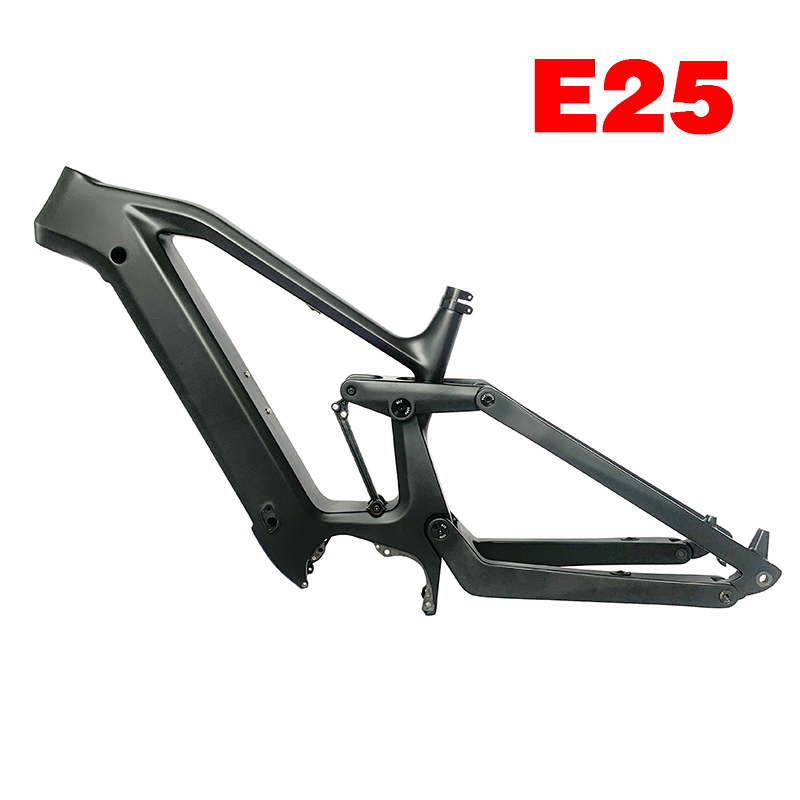

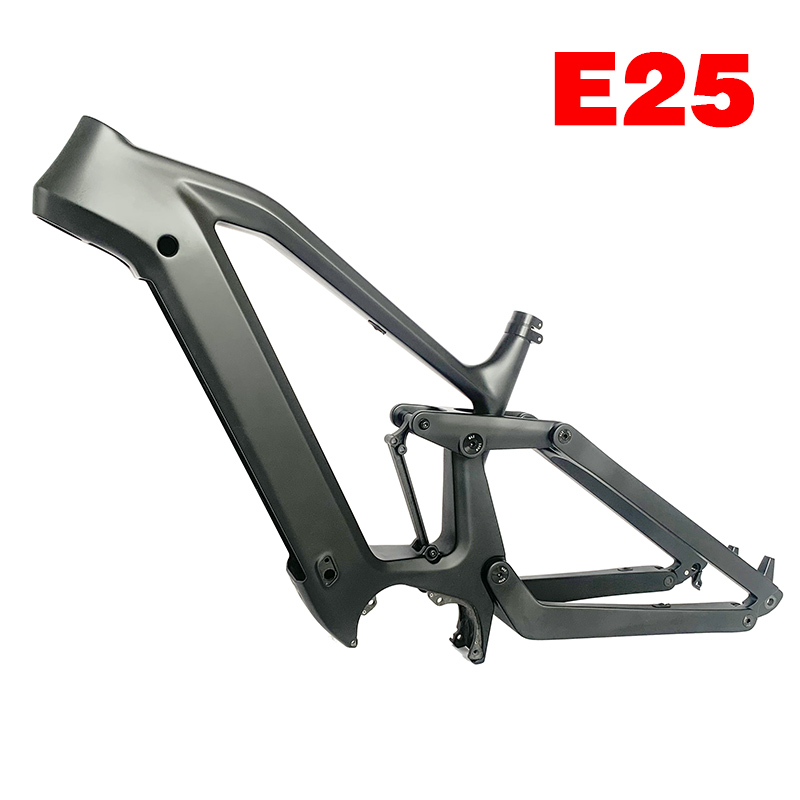

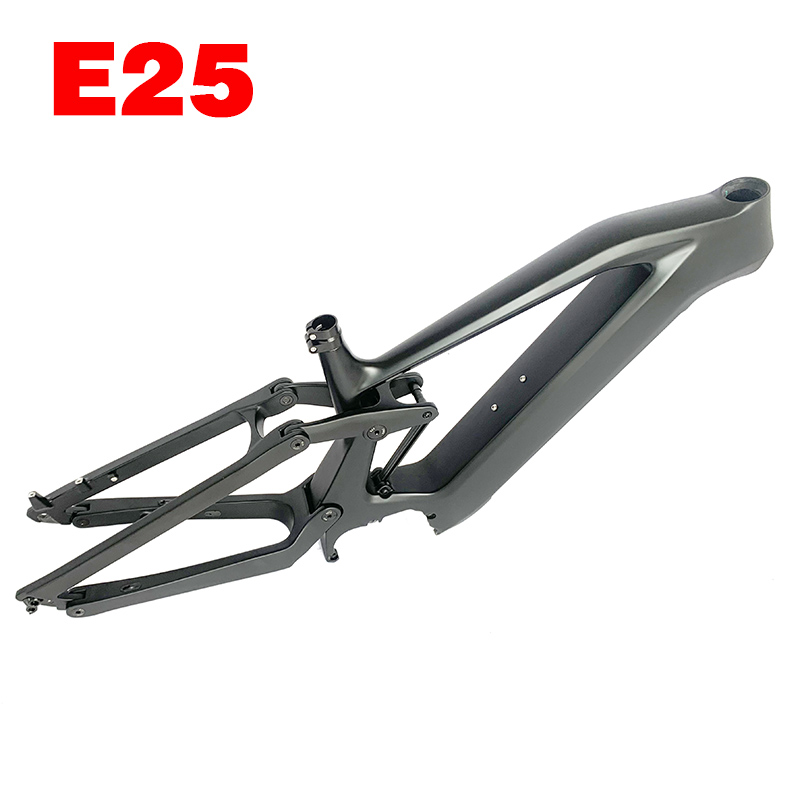

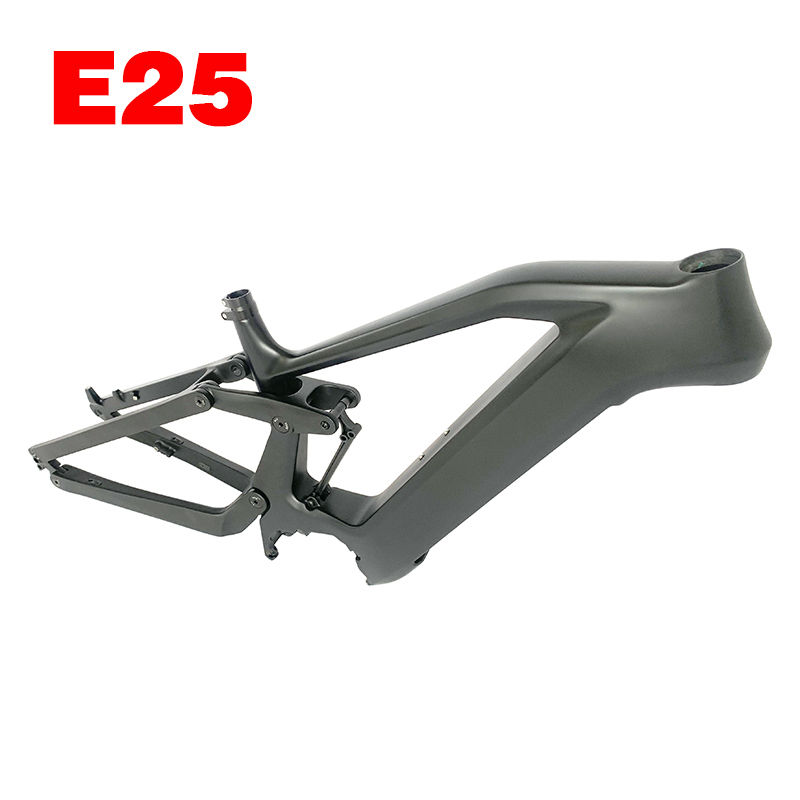

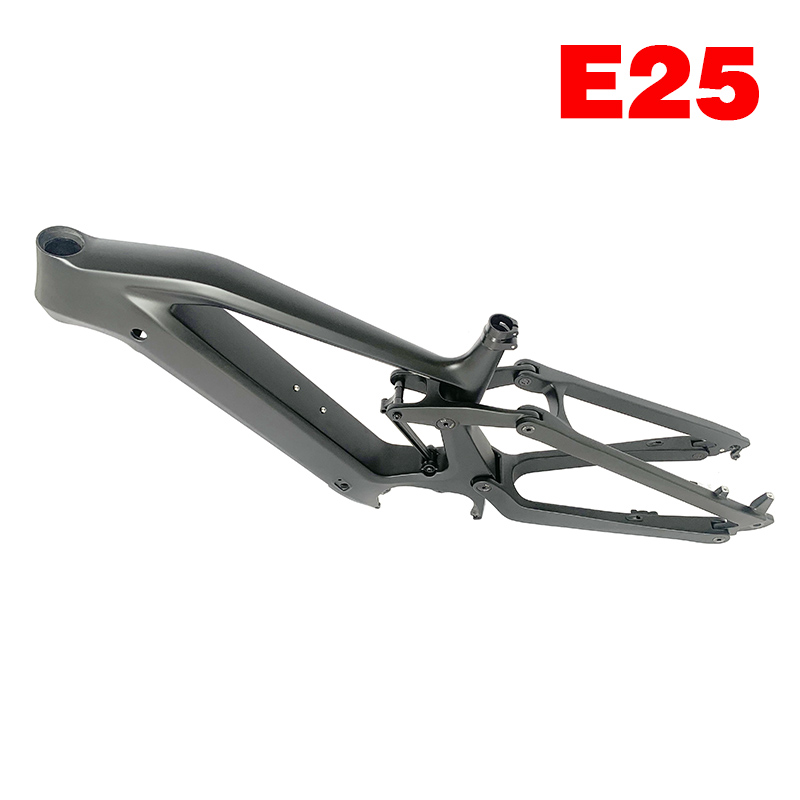

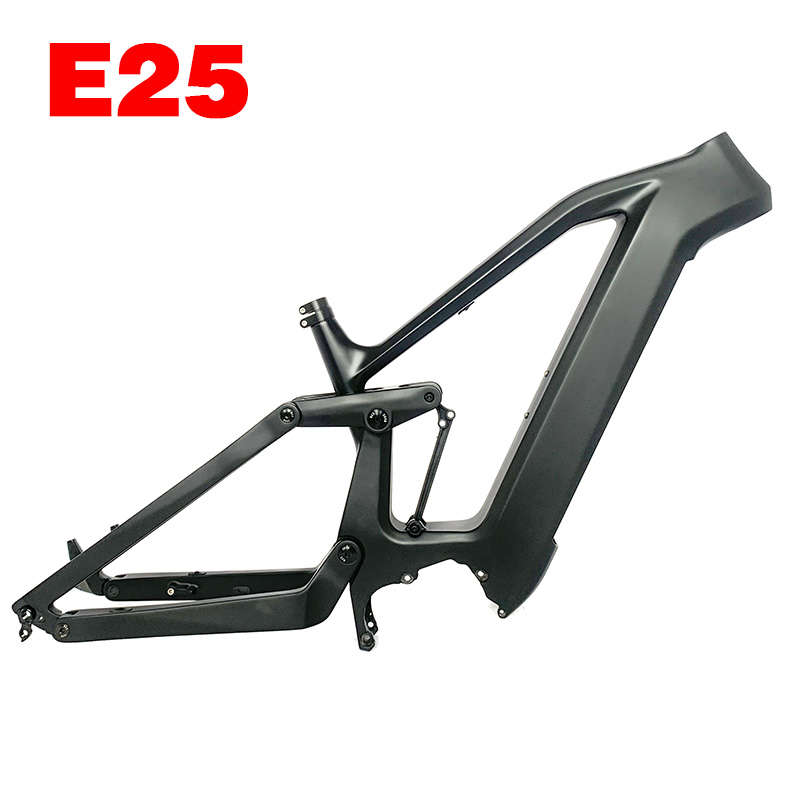

E25-BNew Full Suspension Electric MTB Carbon Frame for All Mountain
QYH Carbon Bicycle Frame E25-B is a New Full Suspension Electric MTB Carbon Frame for All Mountain. Work with 29"*2.6" tire and with a longer rear travel 150mm. The E25-B frame is compatible with bafang M510/M560 motor systerms. The downtube is designed with BAFANG BT F15 internal battery. 882Wh battery, It means you can power M510 or M560 on long rides. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

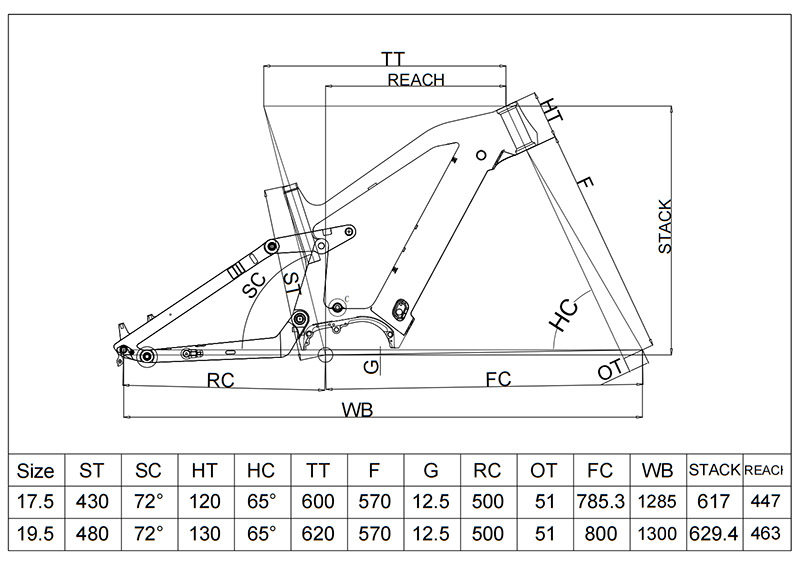

Product Specification:
| Frame | New Full Suspension Electric MTB Carbon Frame for All Mountain |
| Material | High Modulus Carbon Fiber |
| Size | 17.5" / 19" |
| Motor Systerm | Bafang M510 / M560 |
| Battery | Bafang BT F15.882C |
| Max Tire Clearance | 29"*2.6" / 27.5"*3.0" |
| Rear Shock Size | 190*51mm(bushing kits spec 22.2*8mm upper and bottom) |
| Rear Travel | 150mm |
| Front Travel | 150mm |
| Headtube | Upper 52mm Lower 52mm (Full Internal Cable Routing) |
| Seatpost | 31.6mm (37mm Seat Clamp) |
| Dropout | φ12mm*148mm |
| Brake Type | Post Mount Disc Brake |
| Max Chainring | 44T |
| Weight | 3950g±50g (17.5") |
| Test Satandard | ISO4210 |
| Warranty | 2 Years |
