E-system: SHIMANO DU-EP801 mid drive engine motors.
Battery: Compatible with SHIMANO BT-E8036(630wh) and Darfon E4C0G(720Wh)
Perfect for: All mountain riders.
Rear Travel: 150mm.
Rear Shock Size: 205*65mm (Up: 54*M10*P1.0, Down: 30*Φ10)
Tires: Designed to work with 29*2.6" tire or 27.5*3.0" tire.
Cable routing: All internal cable routing. Internal dropper post routing.
Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :
E07All Mountain Carbon E-Bike Frame Shimano EP801 Carbon Full Suspension E-MTB Frame
QYH CARBON Bicycle Frame E07 is a Full Suspension E-MTB Carbon Frame. Work with 29"*2.6" wide tire and with a longer rear travel 150mm. The E07 frame is fit with SHIMANO DU-EP801 motor systerms. The downtube is compatible with SHIMANO BT-E8036 (630wh) and Darfon E4C0G (720Wh) internal battery. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | All Mountain Carbon E-Bike Frame Shimano EP801 Carbon Full Suspension E-MTB Frame |
| Material | Hign Modulus Carbon Fiber |

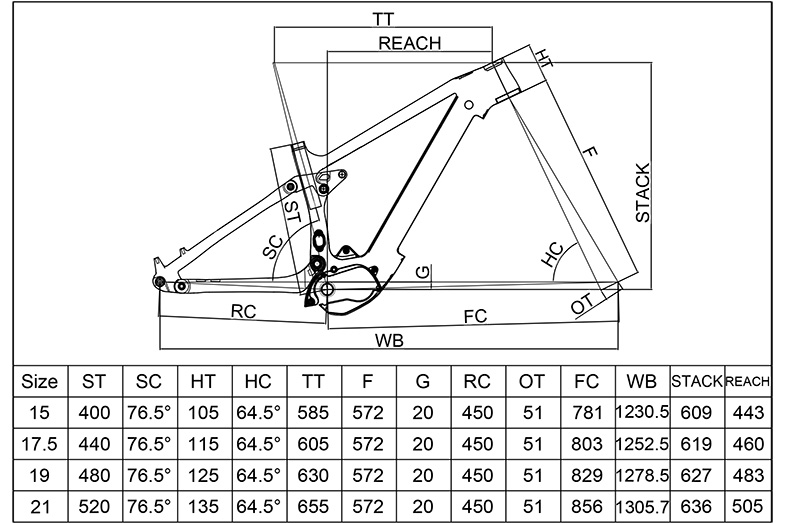

| Size | 15" / 17.5" / 19" / 21" |
| Motor Syterm | Shimano EP-801 |
| Battery | Compatible with SHIMANO BT-E8036(630wh) and Darfon E4C0G(720Wh) |
| Max Tire Clearance | 29*2.6" tire or 27.5*3.0" |
| Rear Shock Size | 205*65mm (Upper: 54*M10*P1.0, Lower: 30*Φ10) |
| Rear Travel | 150mm |
| Front Travel | 150mm |
| Headtube | Upper 52mm, Lower 66mm |
| Seatpost | Φ31.6mm (37mm Seat Clamp) |
| Dropout | Φ12*148mm Boost |
| Brake Type | Post Mount Disc Brake |
| Max Chainring | 34T |
| Weight | 3700g±50g (17.5") |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
