Perfect for: Road Bike Rider.
Tires: Designed to work with 700C*32C tire.
Cable routing: Full internal cable routing.
Disc Brake: Flat mount disc brake mount
Groupset: Mechanical and Di2 groupset compatible
Material: High modulus carbon fiber
Item No :

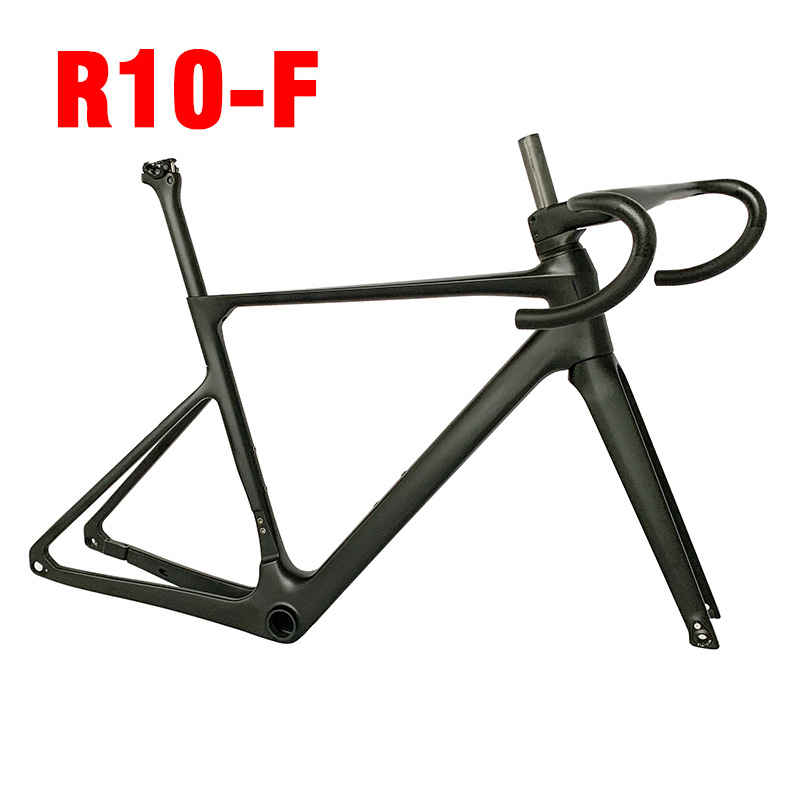

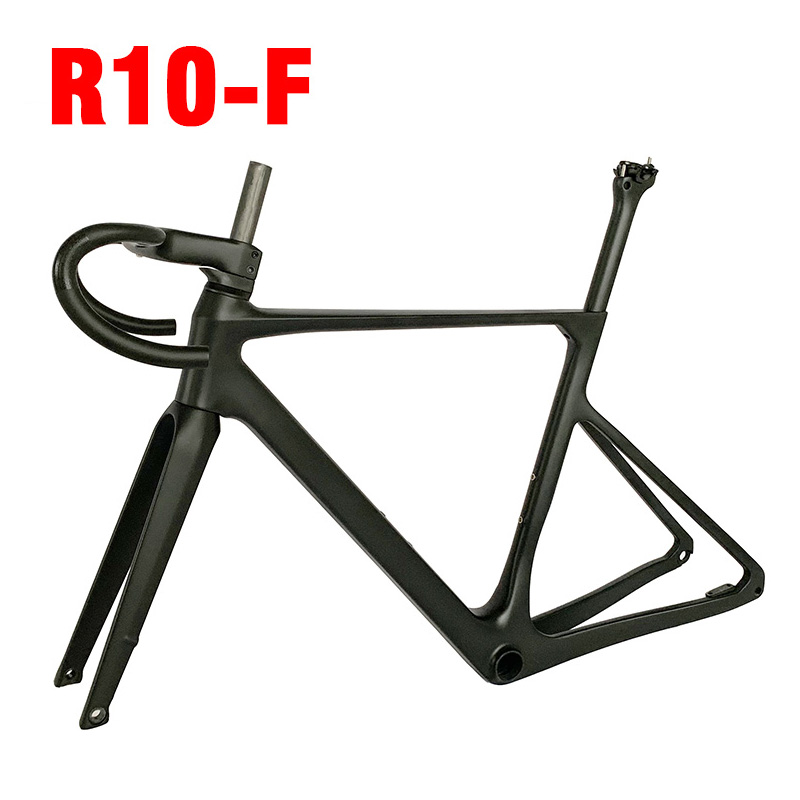

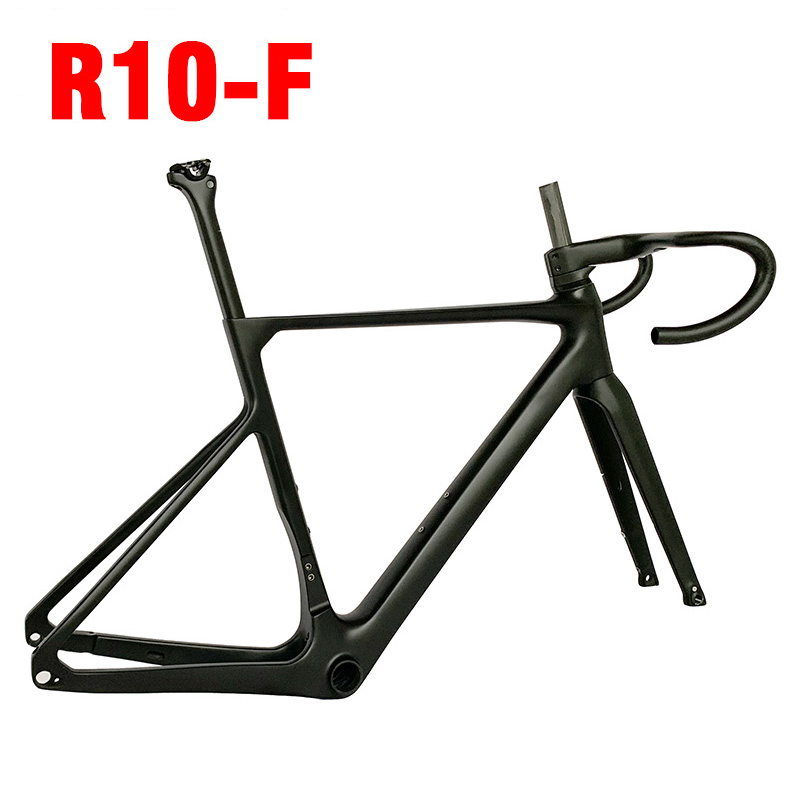

R10-FNew Carbon Aero Road Bike Frameset

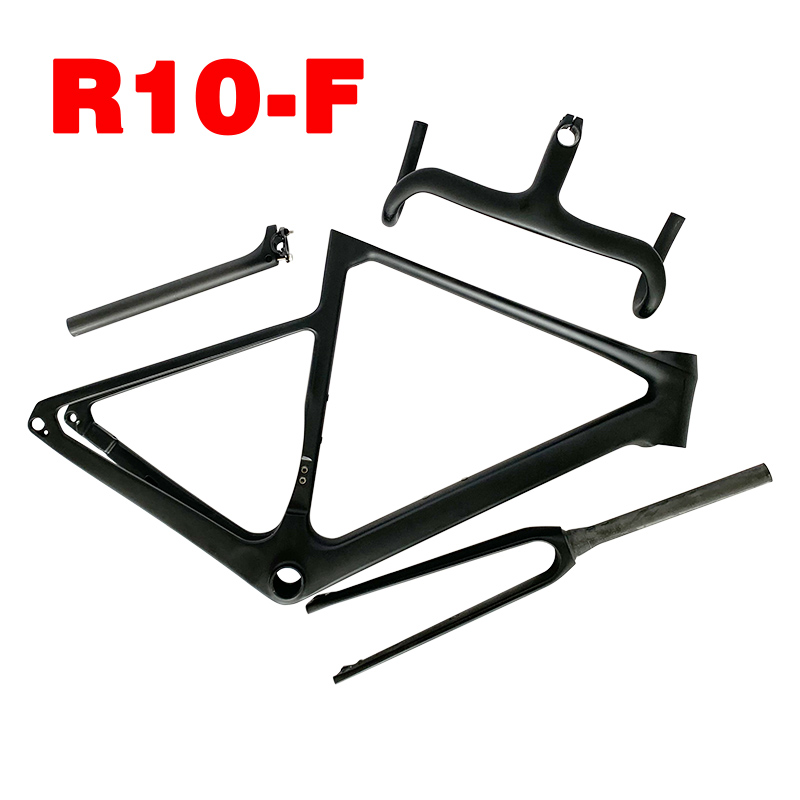

QYH CARBON Bike Frame R10-F is a 700Cx32C Disc Brake Carbon Raad Bike Frame. Lightweight High modulus carbon fiber construction and full internal cable routing means it stronger and comfortable for riding. The Max tire is 32C, compatible with mechanical and Di2 groupset. The aero frameset design elegantly integrates fork, stem, handlebar and seatpost. And Full integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | New Carbon Aero Road Bike Frameset |

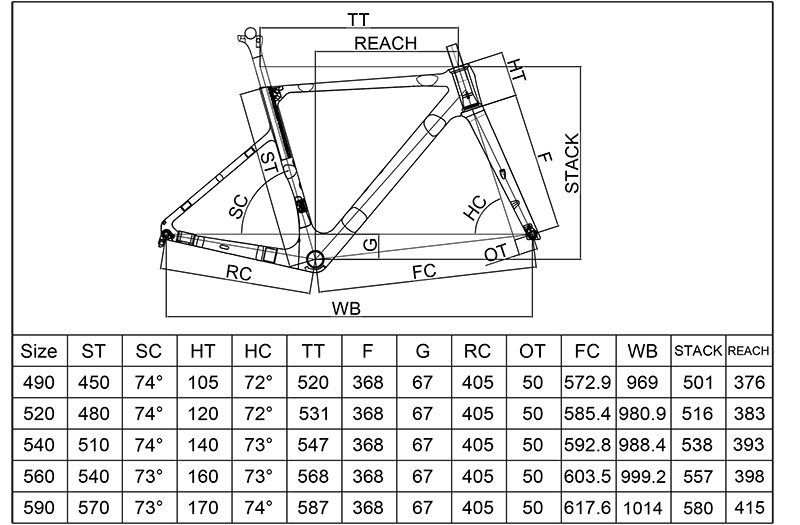

| Size | 490 / 520 / 540 / 560 / 590mm |
| Fork | QTOUR specify aero carbon fork R10-FK |
| Handlebar width | HR03 |
| Weight | 1150g±50g (540mm) |
| Seatpost | Specify Seatpost P10 or Standard 31.6mm |
| Bottom bracket | Press Fit BB86 |
| Max tire clearance | 700C*32C |
| Brake mount type | Flat mount Disc brake 140mm |
| Dropout | Front 12*100mm Thru Axle, Rear 12*142mm Thru Axle |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
