E-system: Campatible with Bafang M510 and M560 motors.
Battery: Reention Rhino7 (36V*24.5 or 48V*17.5).
Perfect for: All mountain riders.
Tires: Designed to work with 29*2.35'' tire or 27.5*2.8'' tire.
Cable routing: All internal cable routing. Internal dropper post routing.
Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :

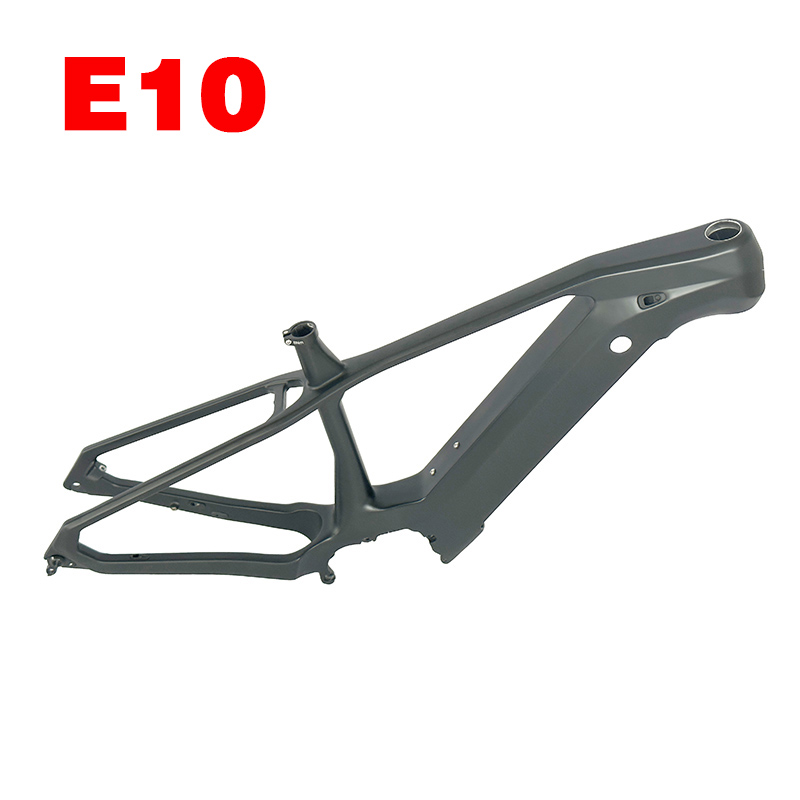

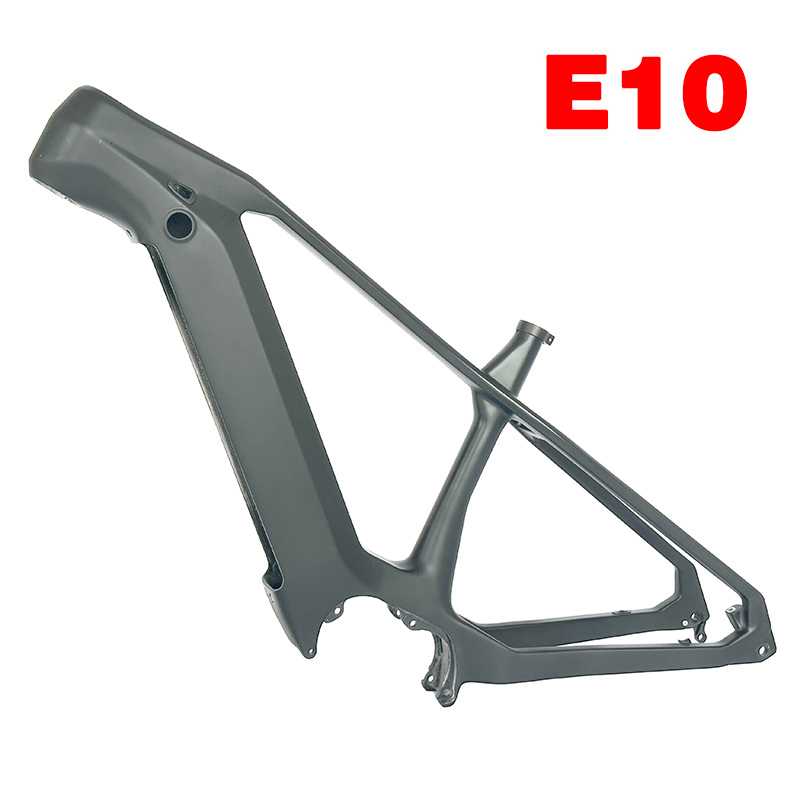

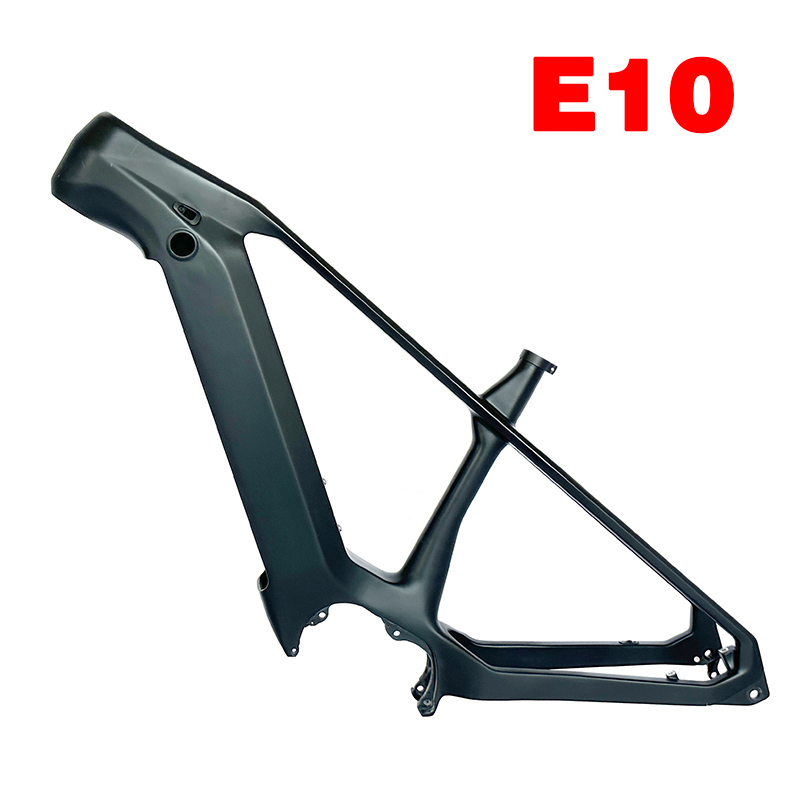

E10Light Weight Hardtail Full Carbon Electric MTB Frame
QYH CARBON Bicyle Frame E10 is a Light Weight Hardtail Full Carbon Electric MTB Frame. Work with 29"*2.35" wide tire. The E10 frame is fit with bafang M510/M560 motor. The downtube is designed with Reention Rhino7 internal battery. The Boost 148 rear axle, All Mountain Geometry deliver assured handling. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | Hardtail full carbon electric MTB frameset |
| Material | High Modulus Carbon Fiber |
| Size | 17.5" / 19" / 21" |
|
Motor |
Bafang M510 / M600 |
| Battery | REENTION RHINO07 36V*24.5 / 48V*17.5 |
| Weight | 2650g±50g |
| Headtube | Uper 44mm, Lower 56mm (Headset FSA-NO.57) |
| Seatpost Diameter | 31.6mm(37mm Camp) |
| Dropout | Thru Axle 12*148mm Boost |
| Max Chainring | 40T |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
