E-system: Campatible with Bafang M510 & M560 motor.
Battery: The internal battery is BAFANG BT F38 (42V*21AH).
Perfect for: Fat Ebike Riders.
Rear Travel: 150mm.
Rear Shock Size: 190*51mm
Tires: Designed to work with 29"*2.6" fat tire. 148mm rear thru axle.
Cable routing: All internal cable routing. Internal dropper post routing. Dropper post is 31.6 diameter.
Material: High Modulus Carbon Fiber
Item No :

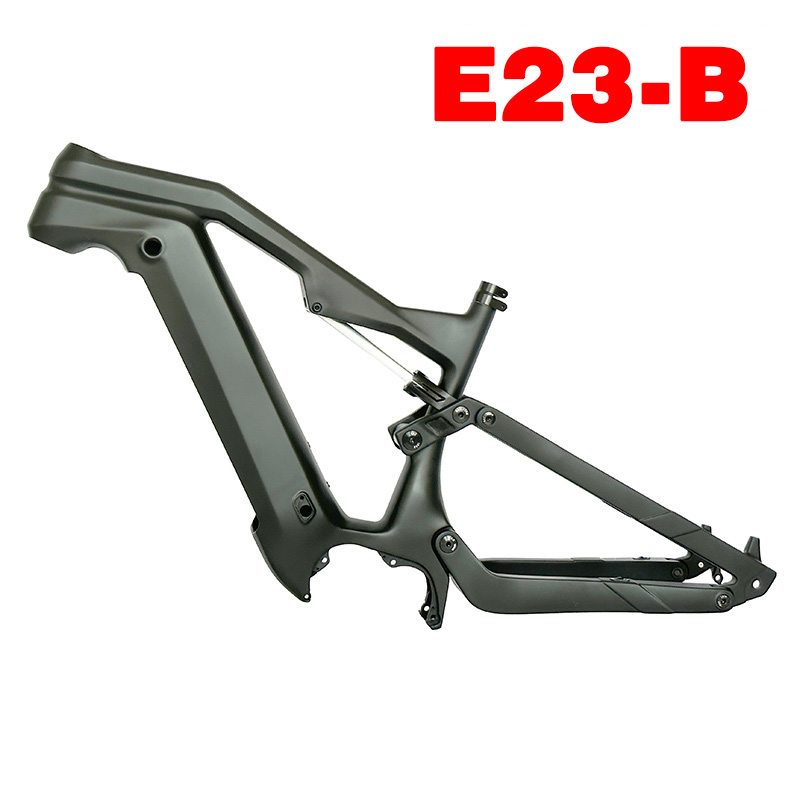

E23-BFull suspension 48V 500w carbon fiber electric mountain bike frame
QYH CARBON Bicycle Frame E23-B is a Full Suspension Carbon Fiber Electric MTB Frame Fit Bafang Motor M510/M560. With a longer rear travel 150mm. The E23-B frame is compatible with bafang M510 and M560 motor systerms. The downtube is designed with BAFANG BT F38 internal battery. 1008Wh battery, It means you can power M510 or M560 motor (48V 21Ah) on long rides. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

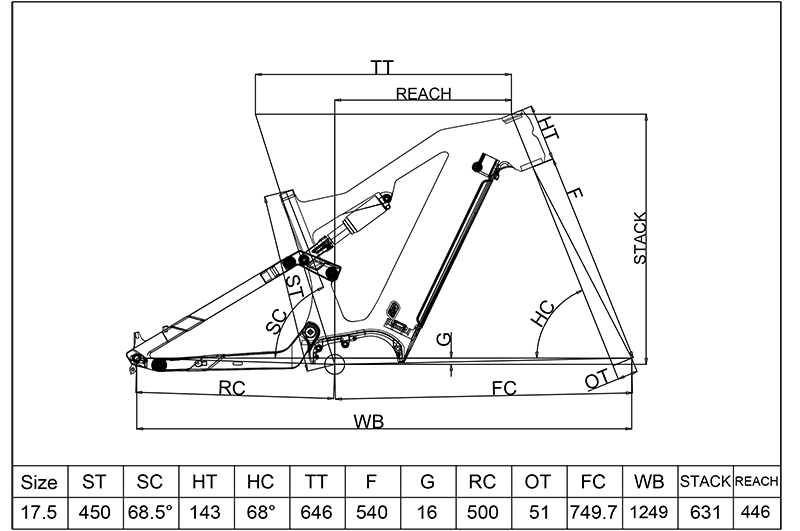

Product Specification:
| Frame | Full suspension 48V 500w carbon fiber electric mountain bike frame |
| Material | High Modulus Carbon Fiber |
| Size | 17.5" |
| Motor Systerm | Bafang M510 and M560 |
| Battery | Bafang BT F38.1008C (48V 21Ah) |
| Max Tire Clearacne | 29"*2.6" |
| Rear Shock Size | 190*51mm |
| Rear Travel | 190*51mm standard mount rear shock (bushing kits spec 22.2*8mm upper and bottom) |
| Front Travel | 150mm |
| Headtube | 150mm |
| Seatpost | 31.6mm (37mm Seat Clamp) |
| Dropout | φ12mm*148mm |
| Brake Type | Post Mount Disc Brake |
| Max Chainring | 44T |
| Weight | 4100g±50g |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
