Perfect for: Road Bike Rider.
Tires: Designed to work with 700C*28C tire.

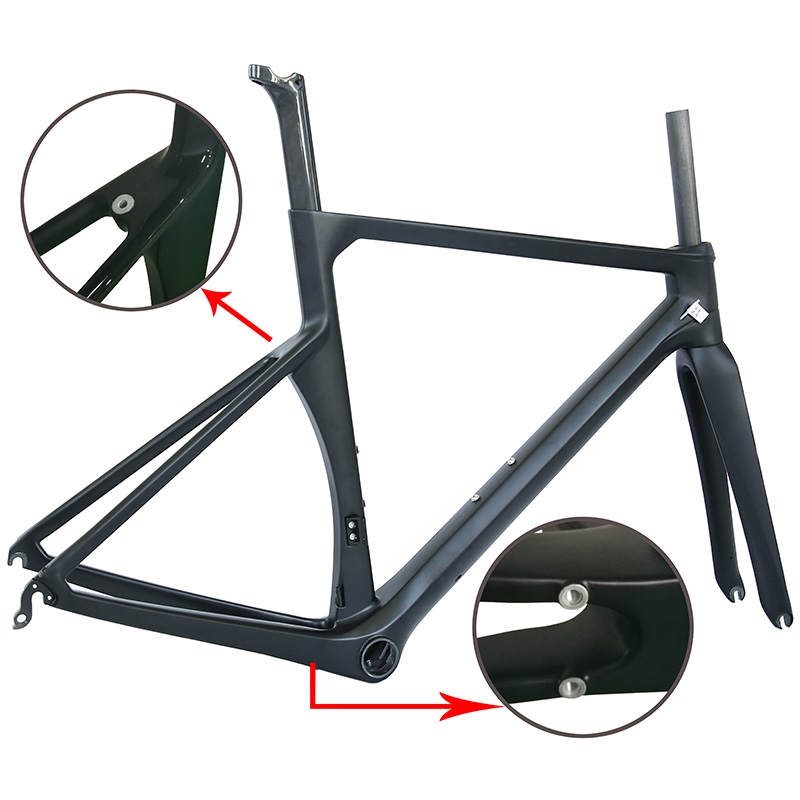

Cable routing: Compatible Full internal cable routing.
Brake: Compatible with V brake and Caliper Brake.
Groupset: Mechanical and Di2 groupset compatible.
Material: High modulus carbon fiber.
Item No :

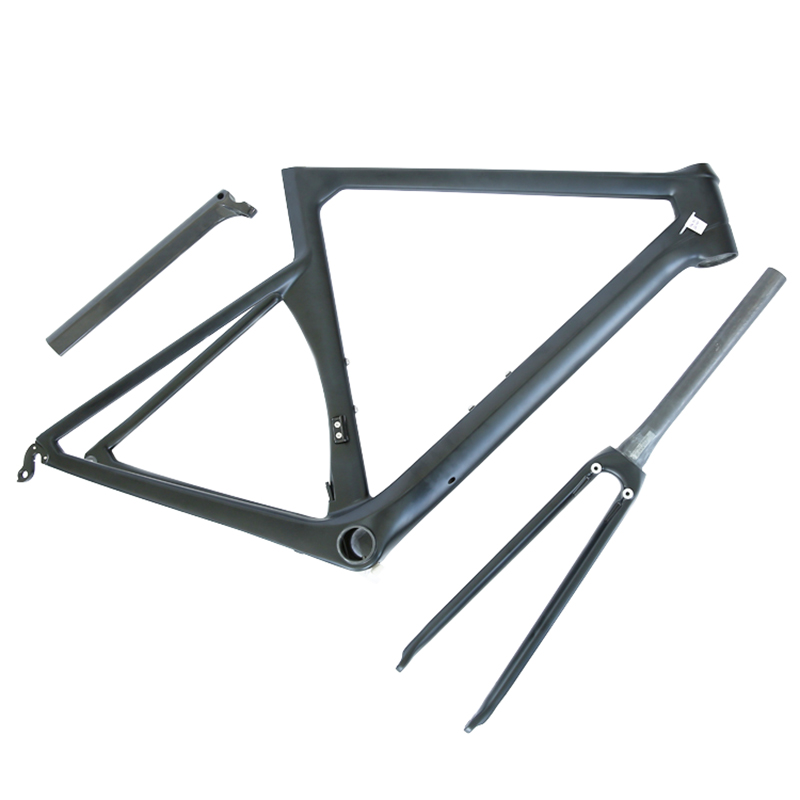

R02-CRim Brake Aero Carbon Road Bike Frame

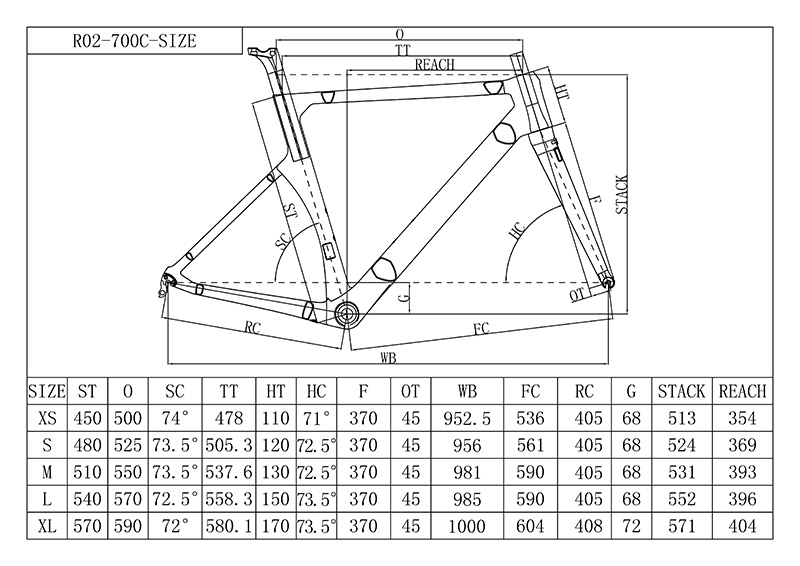

Product Specification:
| Size | 450, 480, 510, 540, 570mm |
| Fork | QTOUR specify aero carbon fork F02 |
| Handlebar width | 400/420/440mm |
| Stem | 90/100/110/120mm |
| Headtube | Straight 1 1/2" head tube or Tapered 1 1/8-1 1/2'' Head Tube |
| Weight | 1110g (540mm) |
| Seatpost | Specify Aero Seatpost P02 |
| Bottom bracket | PressFit BB86 |
| Max tire clearance | 700*28C |
| Brake mount type | Caliper brake (direct mount) |
| Dropout | Front 9*100mm QR Rear 9*130mm QR |
| Groupset | Recommended install elcetronic shifting groupset |
| Handlebar&stem | HR03 |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
